Ensure your Airbag Quality with our Static Deployment Test Chamber

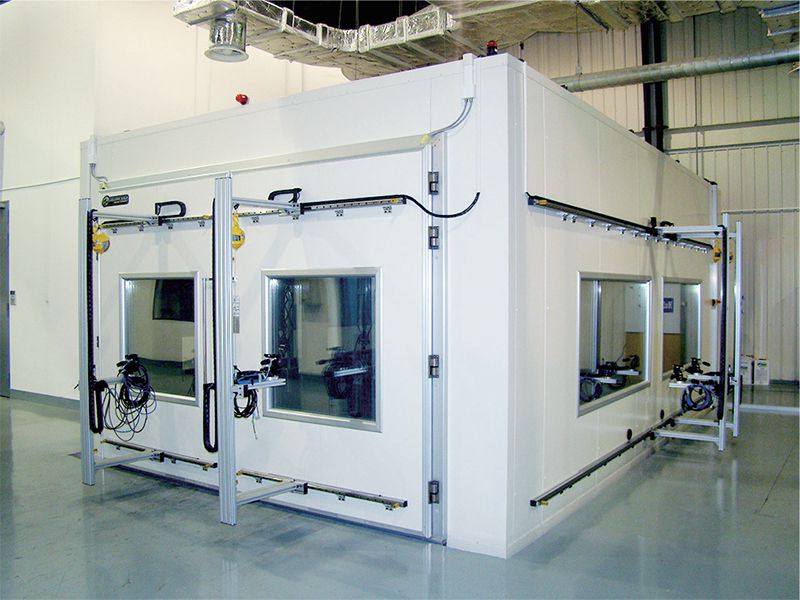

Our airbag static deployment test chamber combines the functionality of an environmental test chamber, airbag deployment system, and lighting system. Our test chamber automates the entire process, including low-temperature conditioning, door opening, airbag deployment, and ventilation, resulting in improved test precision, repeatability, and efficiency.

The airbag static deployment test involves securing the airbag module to a fixture and simulating its actual installed position. High-speed cameras capture the deployment process from multiple angles, allowing analysis of deployment characteristics and timing.

Specifications

• Temperature Range: -50°C to +110°C
• Automatic sliding doors and movable platforms
• Large viewing window with dry air purge and exhaust system
• Integration of indoor and outdoor deployment scenarios
• Simultaneous or independent manual control of the environmental chamber, deployment system, and lighting system

Our airbag static deployment test chambers are custom-built to analyze airbag deployment characteristics and timing. Contact us to discuss your requirements and explore tailored solutions for your airbag testing needs.
