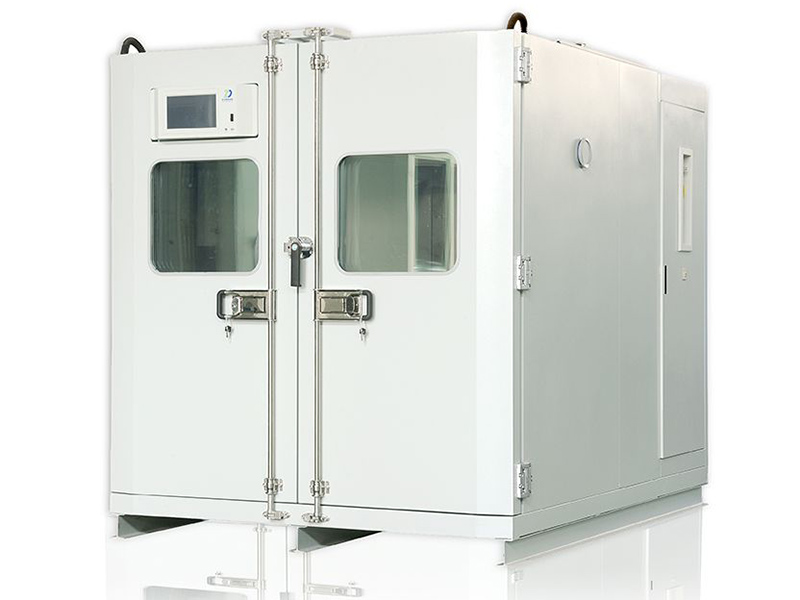

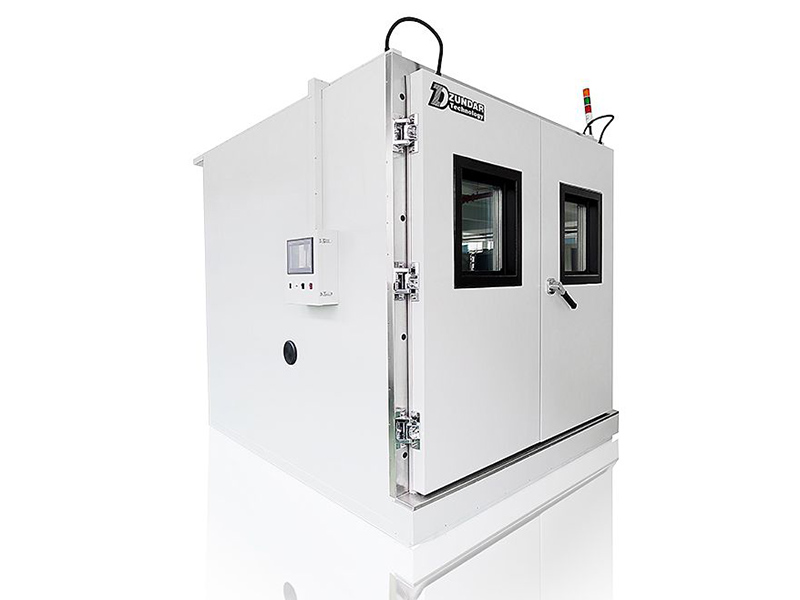

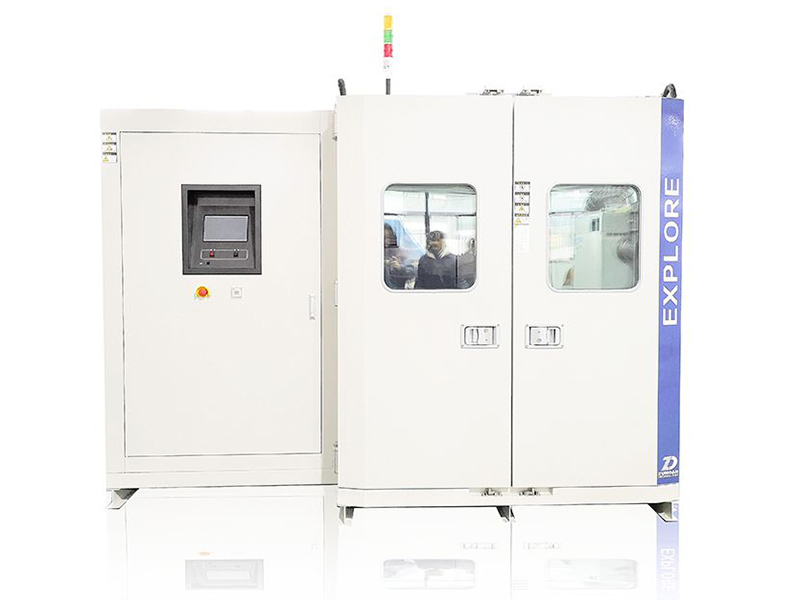

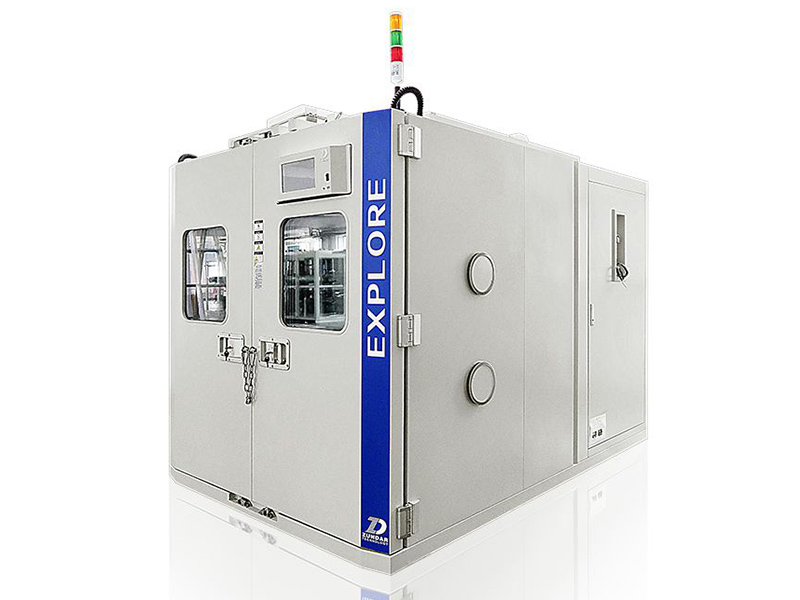

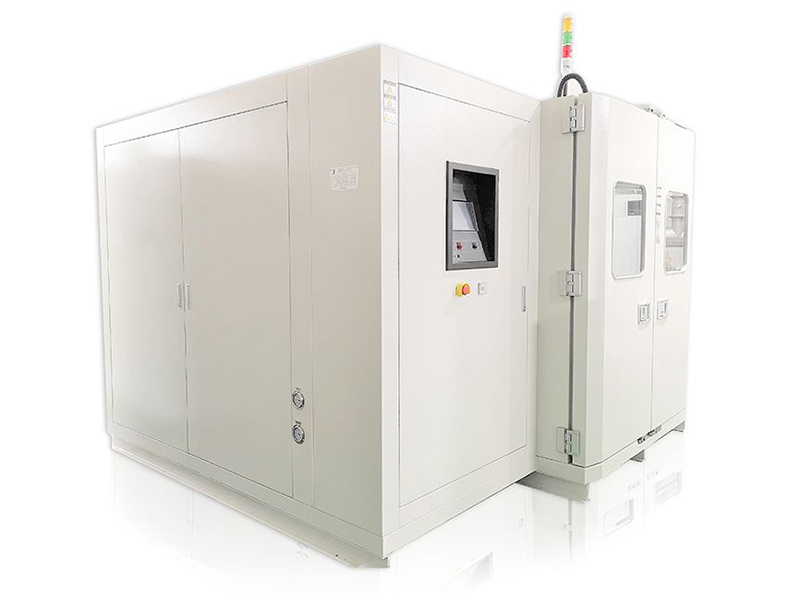

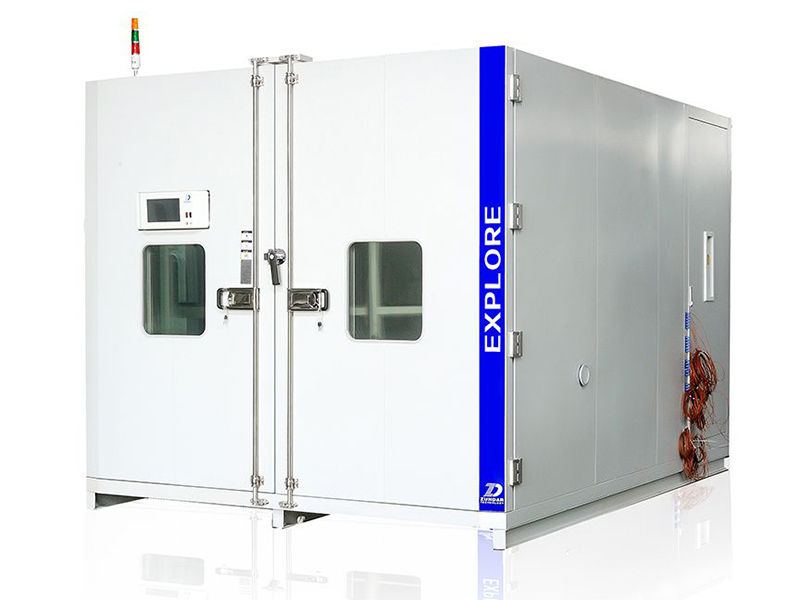

Walk-in Environmental Test Chamber

Mono-block climatic test chamber for testing vehicles and large products
Walk-in Environmental Test Chamber
Walk-in Environmental Test Chamber Walk-in Environmental Test Chamber Walk-in Environmental Test Chamber Walk-in Environmental Test Chamber Walk-in Environmental Test Chamber Walk-in Environmental Test Chamber Walk-in Environmental Test Chamber

Our walk-in environmental test chambers are designed to assess the performance and reliability of products and materials under diverse environmental conditions, including extreme heat, cold, dryness, and humidity. These test chambers are ideal for quality testing across multiple industries, providing accurate and comprehensive results.

Our test chambers feature modular structure, ensuring easy transportation and installation. We offer a variety of size options to cater to your specific requirements. With a scientifically designed airflow system, the chambers maintain uniform temperature and humidity throughout.

Each chamber can be meticulously customized according to your unique needs, guaranteeing optimal equipment suitability, efficiency, and energy savings. Our specially designed refrigeration system enables energy-saving operation, further enhancing the cost-effectiveness of our test chambers.

Request a Quote
  • Cable port with silicone plug 100mm
  • Internal lighting
  • Air-cooled condenser
  • Castors
  • Emergency button
  • Tricolor alarm light
  • USB port for data download
  • USB interface and the software for history data review and converting
  • Customized internal size
  • Temperature ranges
  • Cable port with silicone plugs of 50mm or 150mm
  • Water-cooled condenser
  • Shelves
  • Exterior socket 220V@10A
  • Digital input and output channels
  • Analog input channels (PT100, T-type thermocouple, 4-20mA, 0-10V, -10-10V)
  • Analog output channels (temperature, humidity, measured temperature, measured humidity)
  • Compressed dry air purging system
  • Water purification system
  • Specimen temperature control
  • LAN interface and remote control software
Mono-Block Walk-In Climatic Chamber
Standard Volume 2m³,4m³,6m³,8m³,12m³
Temperature Range -70°C～+150℃
Humidity Range 10%～98%RH
Customized options available for volume and change of rate based on customer requirements
integrated structure, on-site installation; suitable for large size DUT
Specifications
Model AZT(H)2L AZT(H)4L AZT(H)6L AZT(H)8L AZT(H)12L AZT(H)2U AZT(H)4U AZT(H)6U AZT(H)8U AZT(H)12U
Power Supply AC 380V 50Hz three-phase + N + PE
Maximum Current (A) 21/27 29/35 37/43 42/48 57/69 28/34 40/46 50/62 59/71 80/92
Maximum Power (kW) 12/16 17/21 21.5/25.5 24/28 34/42 16/20 23/27 28.5/36.5 34/42 47/55
Cooling Water Flow Rate (m³/h) 4 5 5 5.5 8 4 5 6 10 12
Environment Temperature/Humidity +15～+35°C/≤85%RH
Performance Temperature Range -35°℃~+120℃ -60℃~+120℃
Humidity Range +10℃~+85C10%～98%RH
Dew Point Temperature Range +4C~+84℃
Temperature Fluctuation ≤±0.5℃
Temperature Uniformity ≤2°C
Temperature Deviation ≤±2℃
Humidity Deviation ≤±3%RH
Heating Rate (℃/min’) 3.5 3.2 3.5 2.8 3.2 3.2 3 3.4 2.8 3.2
Cooling Rate (℃/min) 2.5 2.2 2.2 2.8 3.2 2.8 2.5 2.5 3.2 3.6
Observation Window multiple-layer conductive film observation window, size: W435mm×H495mm, one for each door
Condensation Method water-cooled condenser
Internal Volume (L) 1.98 4.05 5.96 8 12 1.98 4.05 5.96 8 12
Internal Dimensions (mm) W 1100 1800 1900 2000 2000 1100 1800 1900 2000 2000
D 1200 1500 1850 2000 3000 1200 1500 1850 2000 3000
H 1500 1500 1750 2000 2000 1500 1500 1750 2000 2000
External Dimensions (mm) W 1400 2100 2200 2300 2300 1400 2100 2200 2300 2300
D 2650 2950 3300 3450 4550 2650 2950 3300 3450 4550
H 2170 2170 2420 2670 2670 2170 2170 2420 2670 2670
  • AZVAT model with humidity control functionality
  • Average rate between the highest and lowest temperatures (no load, no heat dissipation, based on IECC60068-3-5)
  • Performance indicators determined at room temperature (+25℃), with sensors placed at the unit's air outlet
Applications

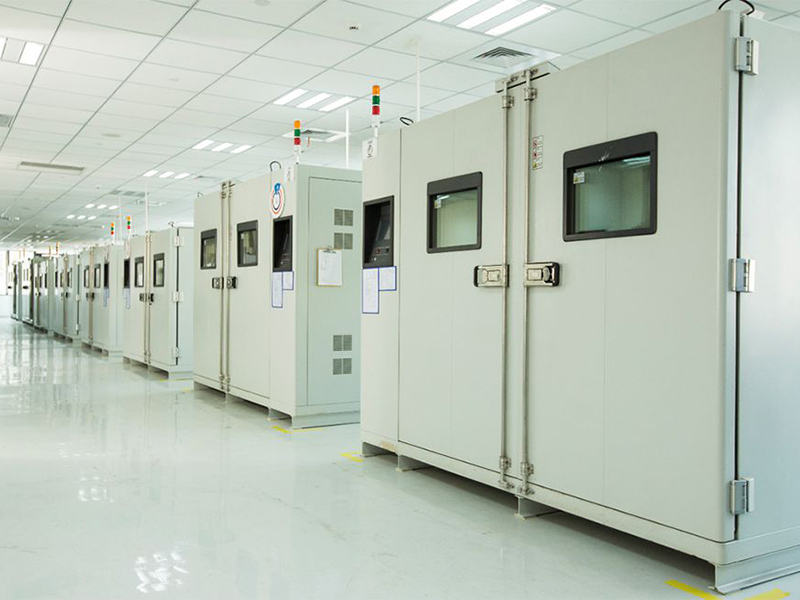

Our walk-in environmental test chambers find wide applications in the automotive, metrology, aerospace, and defense industries. These test chambers are specifically designed for reliable environmental temperature-humidity testing of large-scale components, assemblies, and complete products.

Custom Walk-in Environmental Test Chamber

In addition to our standard offerings, ZUNDAR provides customized walk-in environmental test chambers tailored to your specific volume requirements and temperature range needs. Contact us today to discuss your unique testing needs and discover our comprehensive range of environmental testing solutions.
